MACHINE ASSEMBLAGE

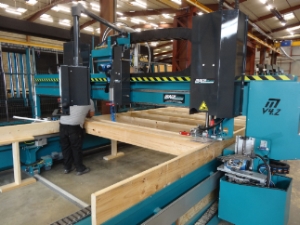

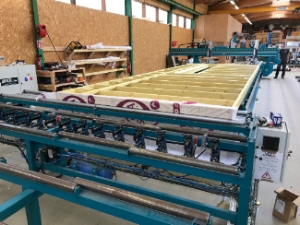

                  Machine Compacte M4:                                                                                                                    Machine Compacte V4-2:





                - Cadrage et clouage du cadre                                                                                                               - Cadrage et clouage du cadre

                - Couture du contreventement                                                                                                                - Couture du contreventement

                - Pose du pare pluie                                                                                                                                - Défonçage

                - Pose et clouage des liteaux                                                                                                                  - Pose du pare pluie

                - Murs jusqu'à 4 m x 10 m, épaisseur 470 mm                                                                                        - Pose et clouage des liteaux

                                                                                                                                                                                - Traçage des liteaux

                                                                                                                                                                                - Murs jusqu'à 4.5 m x 12 m, épaiseur 480 mm

     _________________________________________________________________________________________________________________________________________

MACHINE ASSEMBLAGE DECOMPOSEE

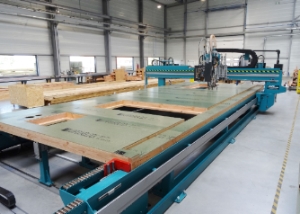

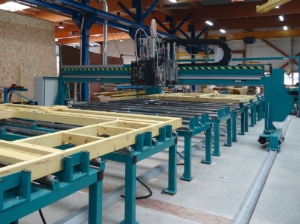

          Machine d'assemblage C4.2:                                        Tréteau d'agrafage                                                          Pont Multifonction:




       - Cadrage ou clouage du cadre                                         - Pose du pare-vapeur par le dessous                              - Couture du contreventement

       - Avance du mur                                                                - Agrafage du pare vapeur                                                 - Pose du pare pluie

       - Mur jusqu'à 4.5 m x 12 m, épaisseur 475 mm                                                                                                           - Pose et clouage des liteaux

                                                                                                                                                                                            - Traçage des liteaux

                                                                                                                                                                                            - Défonçage

                                                                                                                                                                                            - Murs jusqu'à 4.5 m x 12 m, épaiseur 480 mm

   _________________________________________________________________________________________________________________________________________

ISOLATION

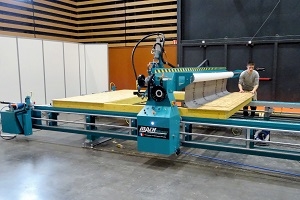

                                                                                                   Portique d'insufflation:



                                                                                                 - Isolation des murs en automatique

                                                                                                 - Gestion de différents matériaux

                                                                                                 - Murs jusqu'à 12 m x 4.5 m

                                                                                                 - Possibilité de travail en multi-postes

     ________________________________________________________________________________________________________________________________________

FINITION

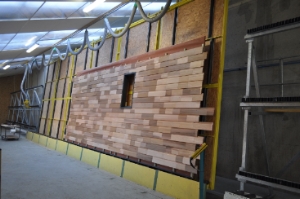

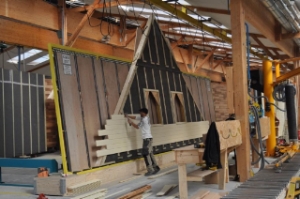

                    Poste de bardage:                                                                                                                           Combiné relevage - bardage:





                - Pose ergonomique du bardage                                                                                                               - Pose ergonomique du bardage

                - Mise à niveau des panneaux par descente en fosse                                                                              - Mise à niveau des panneaux par descente en fosse

                - Finition                                                                                                                                                     - Relevage des panneaux

                                                                                                                                                                                   - Pose de l'isolation

                                                                                                                                                                                   - Finition

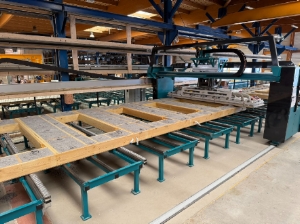

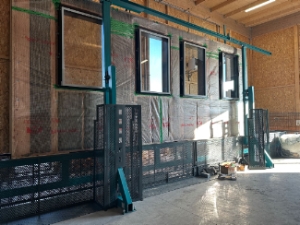

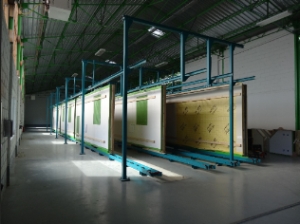

                      Poste de bardage 90°:                                                                                                                     Ligne de transfert:



                    - Pose ergonomique du bardage                                                                                                       - Transfert vertical

                    - Pose ergonomique des menuiseries                                                                                               - Stockage vertical

                    - Mise à niveau des panneaux par descente en fosse                                                                      - Pose d'enduit

                    - Finition                                                                                                                                             - Pose de menuiserie

                                                                                                                                                                               - Finition

     _________________________________________________________________________________________________________________________________________



MANUTENTION

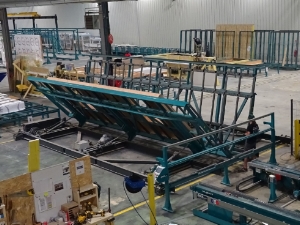

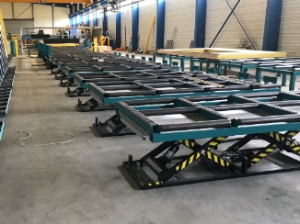

                       Table de relevage et papillon:                                                                                                       Table intermédiaire élévatrice:



                    - Retournement des panneaux                                                                                                          - Mise a niveau des panneaux par montée/descente

                    - Transfert horizontal                                                                                                                          - Pose ergonomique de l'isolation

                    - Relevage des panneaux

                    - Transfert vertical

                    - Déplacement transversal

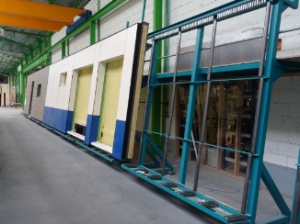

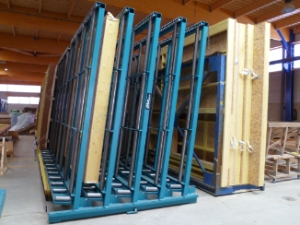

                      Table de travail à 83°:                                                                                                                     Rack de stockage:



                    - Transfert à 83°                                                                                                                                - Transfert à 83°

                    - Stockage à 83°                                                                                                                                - Stockage à 83°

                    - Finition
